The Curve.

The Curve is a medium duty track that is often used with Surf curtains because of its clean form. Often used for large contract projects.

Credit: So Jo Jo

Fitting and Photo: MAK Interiors

  • Available Uncorded Only

    Profile Width x Depth: 22mm x 17mm

    Maximum Length (in one piece): 6m

  • Forward and Reverse Bends: 20cm radius

    Gradual Curve: Available

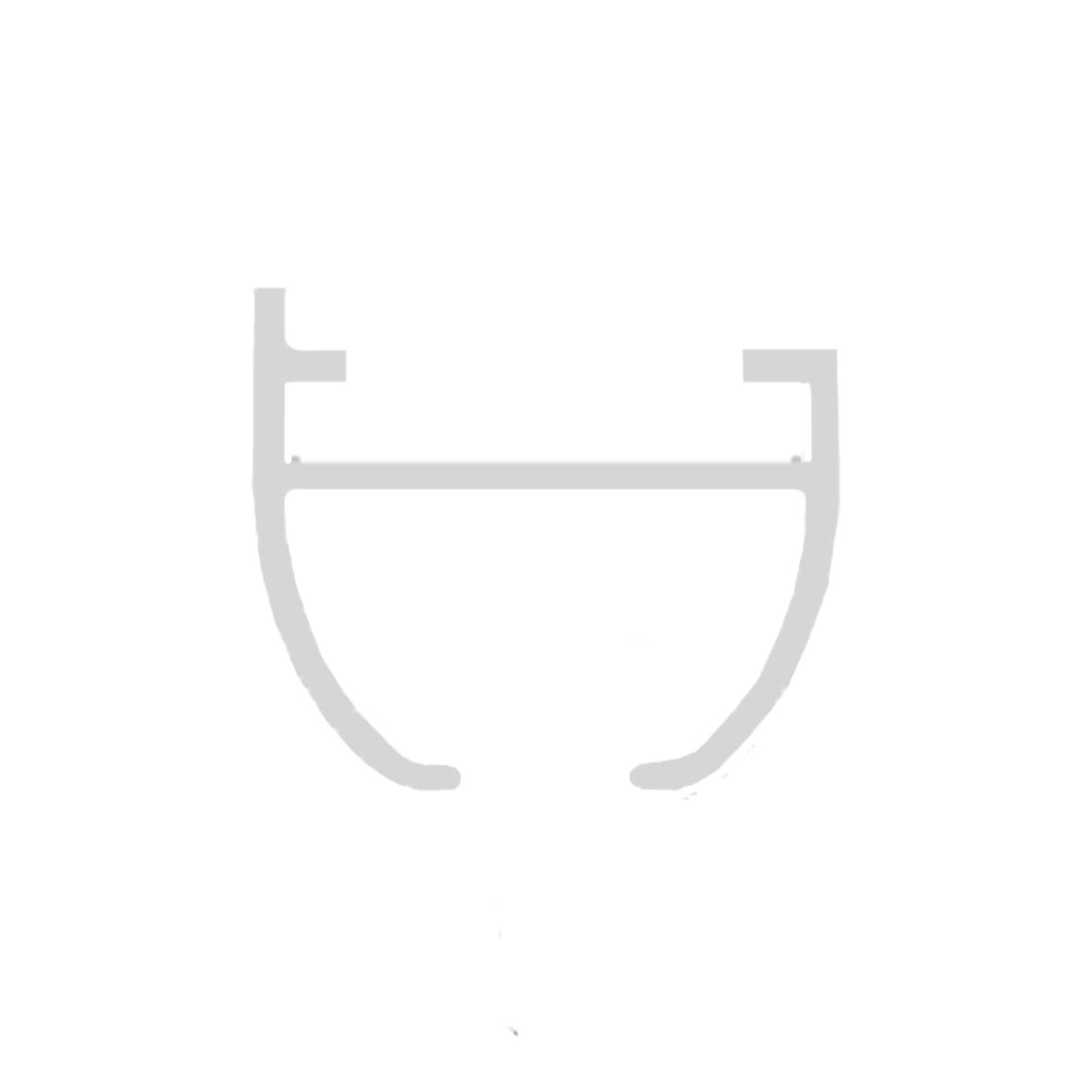

Profile

Colour Options.

White

White

Black

Black

Glider Options.

  • Standard

    A glider for a multitude of curtain headings, from cartridge to pencil pleat.

  • Roller

    Perfect for heavier curtains or when crossing joins, as the roller allows effortless ease of traverse.

  • Surf 60mm

    Gliders are spaced 60mm apart for a shallow and gentle Surf. Joined with ribbon rather to avoid unsightly string hanging from the underneath of the pole channel.

  • Surf 80mm

    Our most popular heading - gliders joined 80mm apart for a pronounced and sleek Surf. Joined with ribbon rather to avoid unsightly string hanging from the underneath of the pole channel.

  • Roller Surf 60mm

    Gliders are spaced 60mm apart and mounted on a roller for ease of traverse. Especially recommended for heavy curtains or if the curtains have to cross a join in the pole.

  • Roller Surf 80mm

    Gliders are spaced 80mm apart and mounted on a roller for ease of traverse. Especially recommended for heavy curtains or if the curtains have to cross a join in the pole.

DOWNLOAD the The Curve Glider Drop Measurements Here

Bracket Options.

Top (Ceiling) Fix Clamp

A discreet clamp that is completely hidden by the raised front lip of the Broadway profile when fixed.

Face Fixed L Bracket & Cover - Standard 3.8cm

A functional L bracket with 3.8cm projection to the middle of the Broadway track. Supplied with colour matching covers that simply slide over the bracket to hide the fixing details.

Face Fixed L Bracket & Cover - Long 8cm

A functional L bracket with 8cm projection to the middle of the Broadway track. Supplied with colour matching covers that simply slide over the bracket to hide the fixing details.

Accessories.

  • Connecting Bridge

    Hidden within the bracket channel, the connecting bridge allows seamless navigation and stability when a track is provided in two or more pieces.

  • Surf Brake

    A simple technology that adds resistance to the leading edge gliders to minimise the natural bounce forward of the Surf curtain.

  • Surf Heading Tape

    Markings with for 80mm Surf at the top and 60mm Surf at the bottom, our Surf heading tape is translucent and supplied in 50m rolls.
