Designed to Disappear. TrackTrim by Blindspace offers a sleek, seamless solution for integrating curtain tracks directly into the ceiling, providing a clean and timeless finish.
-
Maximum Length (in one piece): 6m - however the profile can easily be joined using the splice pins.
Dimensions: See Technical Drawings Below
Compatible with: The Somfy Track (manual and motorised)
-
Forward and Reverse Bends: 30cm Radius - See Below for Fixed Angle Options
Gradual Curve: Not Available
-
Profile
Configurations.
For a single stack curtain.
TTSM1BF
Motor box with flanges for Somfy system.
TT1F
TrackTrim profile with 2 x skim coat flanges.
TTSRB1F
Return box with flanges for Somfy system.
For a pair of curtains.
TTSMB1F
Motor/Pair box with flanges for Somfy system.
TT1F
TrackTrim profile with 2 x skim coat flanges.
TTSMB1F
Motor/Pair box with flanges for Somfy system.

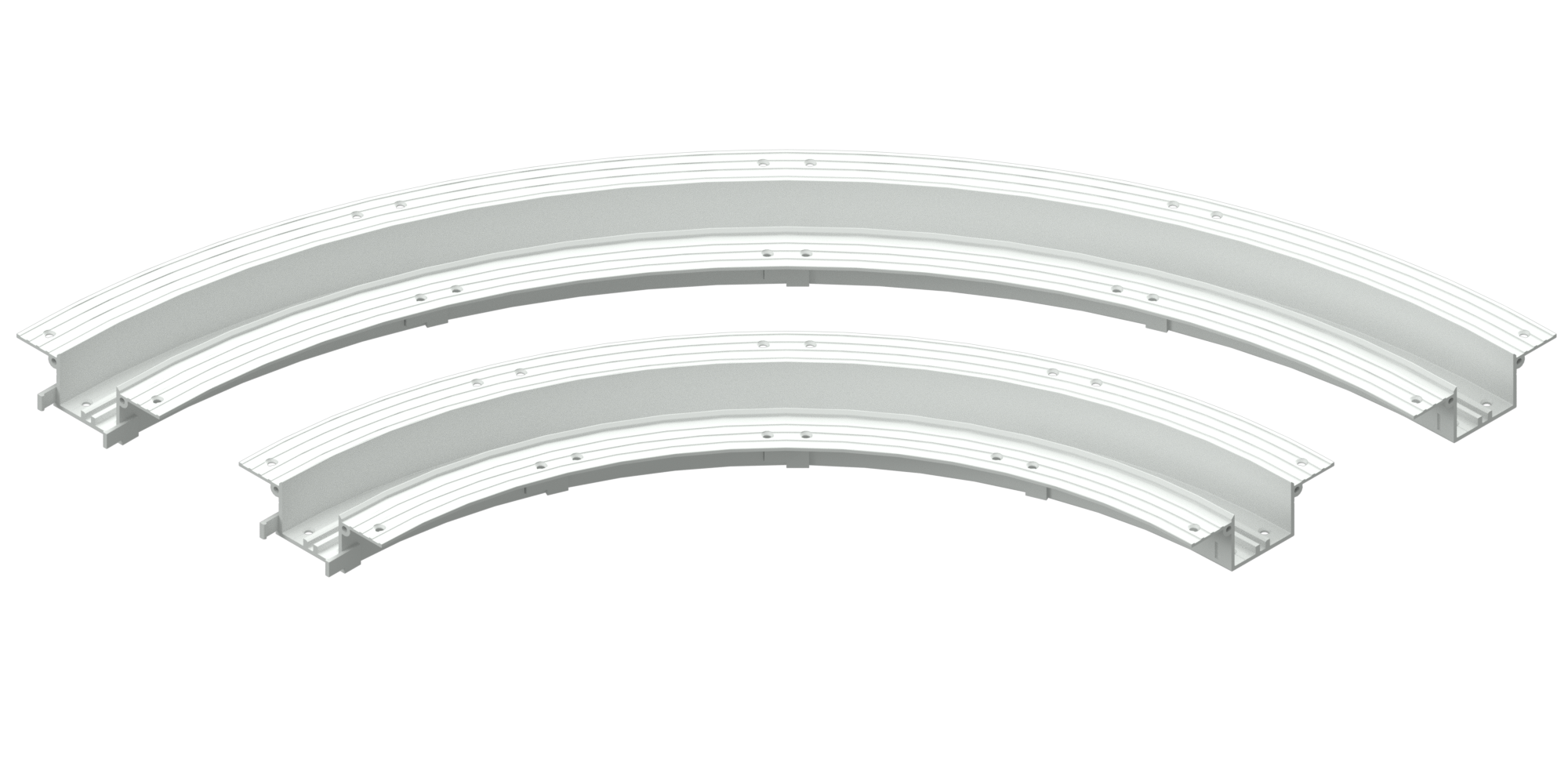

Add for an angle bend.

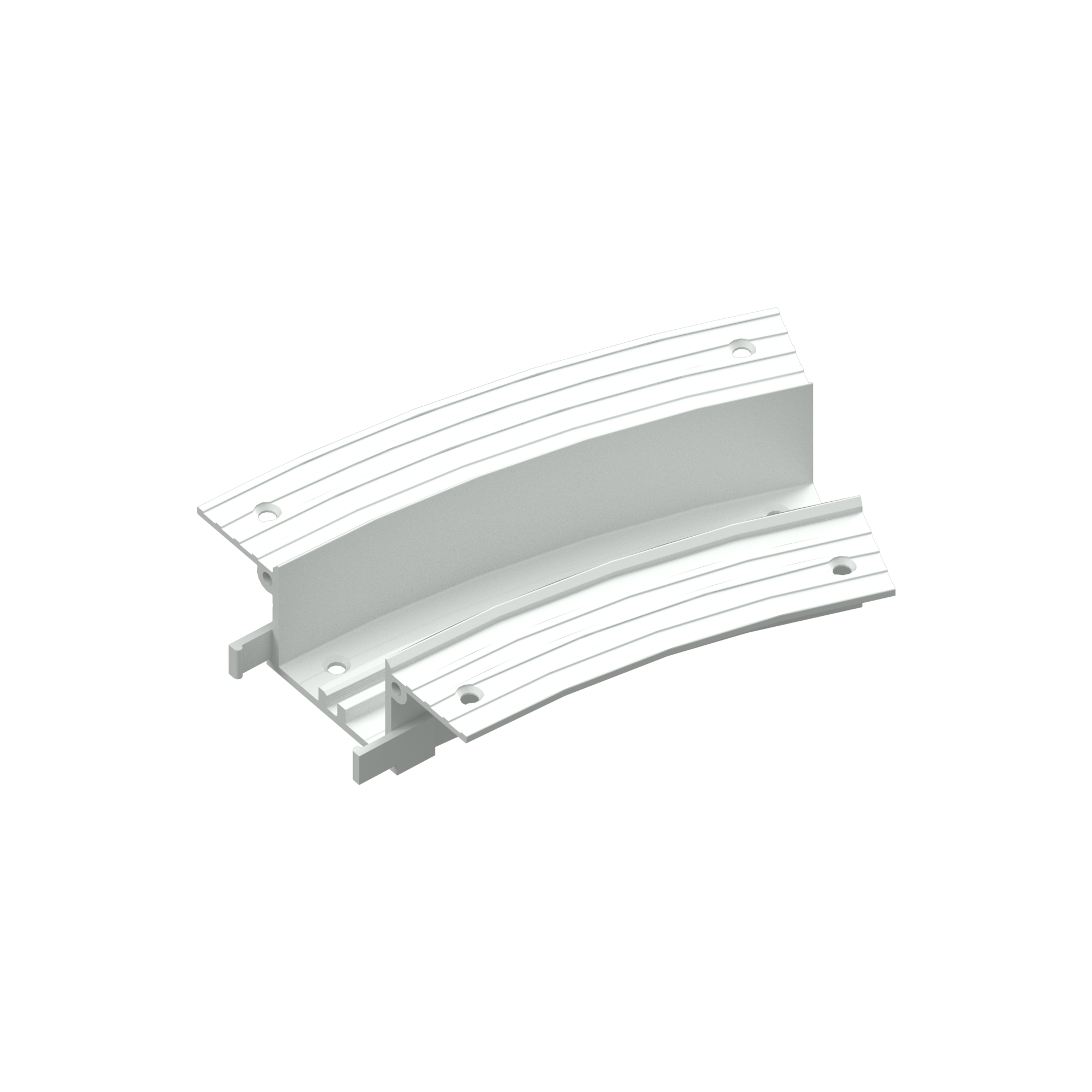

TTCR300
Each curved section is 22.5 degrees with a 300mm radius. Four of the above sections are needed for 90 degrees, two sections for 45 degrees.
Or use a one piece corner section…
TTSCRB1F
A corner section that allows two tracks (return ends) to butt up close to each other for a neat and discreet finish.
Accessories.
CTIK2
Curtain track installation kit.
TTS1
Fixing bracket for Somfy Glydea curtain track.
SPLI1
Splice Pins used to join the profile and endsets/corner pieces together to keep it in line for fixing.
